RZ51(標準PTFE) RZ53(導電性PTFE)
PTFEフレアフェルール スムースファーマホース
PTFE flare ferrule smooth pharma hose
- HOME
- PRODUCT
- フッ素樹脂ホース・フレキ・ベローズ
- フェルールタイプ(接液:全面フッ素樹脂)
- PTFEフレアフェルール スムースファーマホース
サニタリーに不可欠な要素である内面平滑+柔軟性を両立した画期的なホース。高品質のフレア加工を施し、プロセスホースの様々な課題を解決します。
業界待望の内面平滑フッ素樹脂ホースのフェルールタイプ。
外面を螺旋形状、内面を平滑形状にすることで、サニタリー性に必要不可欠な高い洗浄性と柔軟性を実現しました。
業界標準であるISOフェルールとの接続が可能で、液だまりによるプロセスの課題を一気に解決できます。
用途Usages
化学薬品・溶剤・腐食性流体・医療・半導体用薬液・海水淡水化装置・バイオテクノロジー装置などでのご使用をお勧めいたします。
We recommend using this product with chemicals, solvents, corrosive fluids, medical and semiconductor chemicals, seawater desalination equipment, biotechnology equipment, etc.
ポイントPoint
清浄性と柔軟性の両立
接液材質全面PTFEによる不純物の溶出ポイントを極限まで抑えながら、柔軟性を実現しています。
The entire wetted material is PTFE, minimizing the elution points of impurities while achieving flexibility.
耐久性
中間層のシリコーンにより、飛躍的に耐久性が高まりました。
The silicone middle layer dramatically increases durability.
オプションOption
ホース:導電性 R<10⁶Ω~10⁹Ω(RZ53)
Hose: Conductivity R<10⁶Ω~10⁹Ω(RZ53)
補強:負圧対応用Vスリーブ適用可能
Reinforce: PTFE V sleeve
外装:耐摩耗用ゴムおよびシリコンなど
Exterior: Wear-resistant rubber and silicone
- その他
- 追加の特殊外装についてはお問い合わせください。
- others
- Please contact us for additional special packaging options.
適合規格Conformed standards
ISO 10993
FDA 21CFR 177.1550
FDA 21CFR 177.2600
USP Class VI
仕様Specification
接液部材質 : PTFE(RY51), 導電性PTFE(RY53)/中間補強材:シリコーン / 外装材質:SUSブレード
使用温度範囲 : -60℃~180℃
Wetted parts material: PTFE (RY51), conductive PTFE (RY53) / Intermediate reinforcement material: Silicone / Exterior material: SUS braid Usable temperature range: -60℃ to 180℃
- 備考
- チャートのサイズ以外にも製造可能ですのでお問い合わせください。
- remarks
- We can also manufacture sizes other than those shown in the chart, so please contact us for more information.
継手Fitting

フェルールフレアタイプ
Ferrule flare type

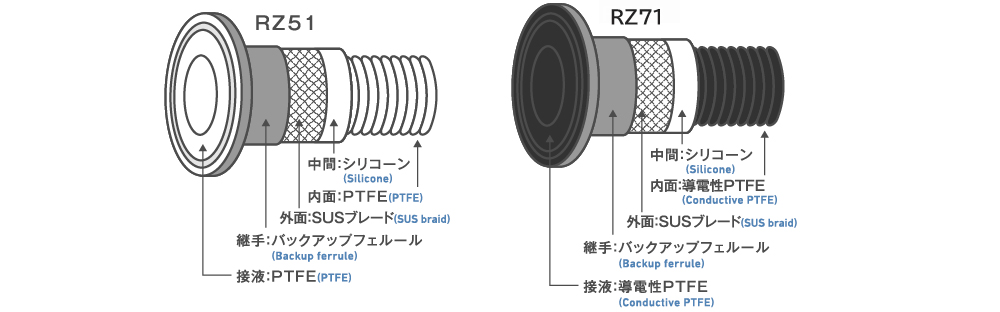

材質構成Material composition
・各適合規格は全ての安全性を証明するものではありません。ご使用時には安全性の事前確認が必要です。
・ホースサイズと継手サイズは必ずしも一致するものではありません。適用可能な金具継手には別途お問い合わせください。
・各ホースの詳細寸法は代表的なものを抜粋した数値です。状況により使用するホースが異なる場合があります。
・継手形状や加工の影響、製造原料の変更など様々な要因により詳細データは予告なく変更することがございます。
※当ホームページ掲載の製品仕様やサイズ・各数値は代表的な弊社取り扱い製品における参考値です。
生産状況や材質の変更などにより、実際の製品とは異なる場合がございますので予めご了承ください。
Any registration does not guarantee all safety. Please check your safety before using it. The hose size and fitting size do not always match. Please contact us for applicable fittings. The detailed dimensions of each hose are excerpts of typical ones. The hose used may differ depending on the situation. Detailed data of the hose used is subject to change without notice due to various factors such as the shape of the joint, the influence of processing, and changes in the manufacturing materials. ※The product specifications, sizes, and values posted on this website are reference values for typical products handled by our company. Please note that the actual product may differ due to changes in production conditions and materials.
